JS-Q 豪华带灯脚踏式气动扩胎机
Foot-operated pneumatic tyre expander
性能与特点 ：
JS-Q豪华带灯脚踏式气动扩胎机采用脚踏式气阀控制，随机配有12V LED工作灯(内配有变压装置)、双杯气源处理器、工具盘，让操作更加方便灵活。此外，还具有扩轮胎的范围有五档可调、安全气动定位、气缸配有过压保护装置等特点。该机专为1200R20及以下多种型号的轮胎在修补过程中将轮胎固定和扩张而设计的，以便有更大的空间对轮胎进行整孔、打磨、吸尘及胶片粘贴等作业。
Features and performance:

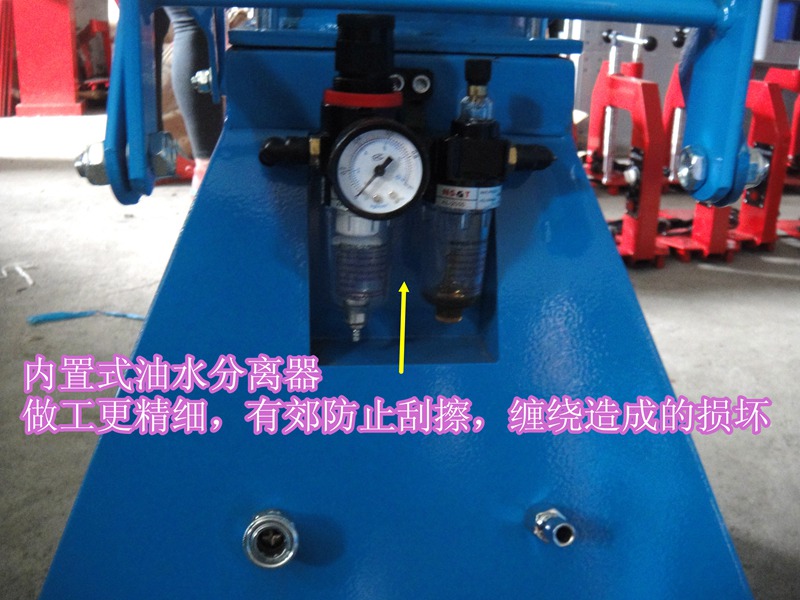

It adopts pedal air valve control, equipped with working lamp and tool rack; It features double-cup air source processor installed in air path system, safe air-operated location, air cylinder with over-pressure protection device. High effective working makes tyre repair more convenient and easier, also with humanistic design style.
主要适用范围：1200R20及以下各种轮胎
轮胎宽度：145mm-275mm
轮胎直径：11"-24"
Be suitable for:tyre width 145mm-275mm
tyre diameter 11"-24"
技术参数 Parameters
用12 V工作灯,变压器 12V working lamp with a transformer
最大扩胎 Max. Tyre width：380mm
输入电压 Input Voltage：220V
工作压力 Operating Pressure：0.6Mpa
毛/净重 G.W./N.W.：54.5kg/52.5 kg
包装尺寸 Packing Size：580*550*930 mm
